Single Chute Wrapping Machine

Single Chute Wrapping Machine
Single Chute Wrapping Machine
Product Code : LGMP LR 90A
Brand Name : LGMP
Product Description

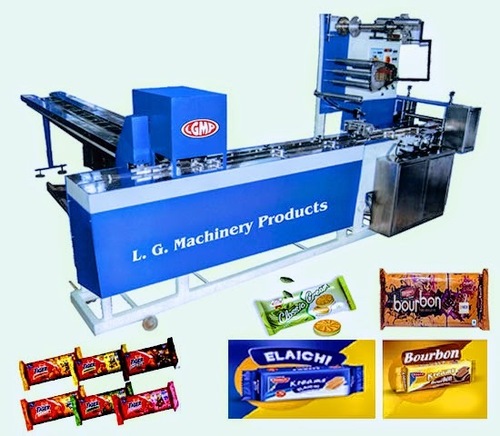

Single Chute Wrapping Machine



The Single Chute Wrapping Machine is suitable for packing square and rectangular shaped biscuits. The main hoppers are used to place biscuits as per stack length. These biscuits are sent to the main feeding conveyor through its automatic feeder. The nylon lug of this machine is used for end sealing of packaged items. As a renowned manufacturer and exporter of Maharashtra, we are offering standard quality Single Chute Wrapping Machine in the market. Available  in 35 feet x 6 feet x 4 feet size and around 1.3 ton weight, this machine is know for its 8 hours of production capacity per day.

Technical Specification :

Capacity

Production for 8 Hrs.

Dimensions

Model

Length

Height

Width

Approx weight

LGMP/LR/90A

15 Feet

6 Feet

4 Feet

1.3 Ton (Approx)

Technical Data

Maximum Product Height

Minimum Product Height

Maximum Width of the Product

Minimum Width of the Product

Max./Min. Stack Length

Maximum Speed (Depending upon the product)

60 mm

25 mm

60 mm

25 mm

180mm/.55mm


Wrapping Material

Maximum Width of the Packing Material

Minimum Width of the Packing Material

Maximum Reel Dia

250 mm

140 mm

12 inch

Electrical Data

Power

Frequency Drive

Main Motor

Heater

3 Phase

230V
1.5 H.P

3 Phase
6 Lead

50 Volts 50 Volts

440V with neutral 2 K.W.

Input Single Phase
Output 3 Phase

Input 1.5 H.P.
Output 1440 RPM 1.125 K.W.

250 Watts 400 Watts,
for Jaws Disc Heater

Transformer :Input Ac 440 Volts / Output Ac 50 Volts
