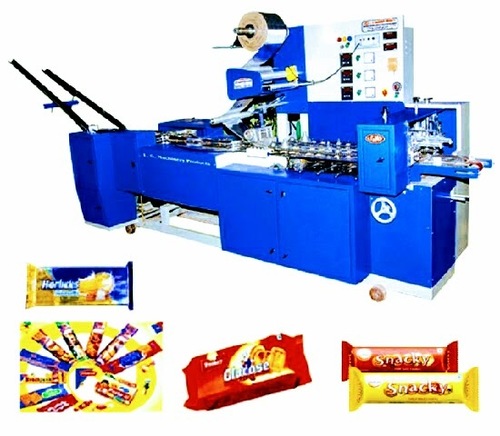

Family Pack Biscuit Wrapping Machine

Family Pack Biscuit Wrapping Machine
Family Pack Biscuit Wrapping Machine
Send Inquiry
Product Code : 05
Product Description

Backed by rich industry experience and knowledge, we are engaged in manufacturing and supplying a wide array of Family Pack Biscuit Wrapping Machine. This is manufactured utilizing optimum quality materials under the observation of our team at par with industry standards. We cater to all industries and our machine is best suited for packaging the biscuits. In addition to this, clients can avail this Family Pack Biscuit Wrapping Machine from us in diverse models and technical specifications at reasonable prices.

Features:

  • Unmatched functionality
  • Energy efficient
  • Rust resistance body

Dimensions

Model

Length

Height

Width

Approx. Weight

LGMP/LR/30

16 FT 5 Inches

6 Feet

7 Feet

1.3 ton

LGMP/LR/60

17 FT 5 Inches

6 Feet

10 Feet

1.3 ton

LGMP/LR/60

14 FT 5 Inches

6 Feet

4 Feet

1.3 ton

LGMP/LR/100

11 FT

6 Feet

3.5 Feet

900 kg

Technical Data

Model

LGMP/LR/30

LGMP/LR/60

LGMP/LR/90

LGMP/LR/100

Max. Product Size

Ø 60 mm

Ø 60 mm

Ø 60 mm

Ø 60 mmØ

Max. Product Size

Ø 25 mm

Ø 35 mm

Ø 25 mm

Ø 10 mm

Max. Product Width

150 mm

60 mm

60 mm

60 mm

Max. Product Width

100 mm

35 mm

35 mm

20 mm

Max. Stack Length

180 mm

200 mm

195 mm

150 mm

Max. Product Speed (Depending upon the Product)

25-30 packets per min.

70-80 packets per min.

100-120 packets per min.

200-250 packets per min.

Wrapping Material

Model

LGMP/LR/30

LGMP/LR/60

LGMP/LR/90

LGMP/LR/100

Max. Width of packing material

500 min

250 mm

250 mm

250 mm

Max. Width of packing material

140 inch

140 mm

140 mm

90 mm

Max. Reel Dia.

10 inch

10 inch

10 inch

10 inch

BISCUIT SANDWICHING MACHINE MODEL: LGMP/LR/40

Description

Model LG 10

Model LG 08

Number of Nozzles

10

8

Biscuit Size - Round

28-50 Dia

55-80 Dia

Biscuit Size - Square

30-45

55-75

Biscuit Size – Rectangular (Minimum)

25x65

50x80

Biscuit Size – Rectangular (Maximum)

40x65

65x80

Stacking Edge

3 Rows

2 Rows

Output per minute (Approx)

600

400

Cream deposition

Sandwiching

Sandwiching

Power Required (440V-3 phase)-for sandwiching machine for conveyor

3 H.P

2 H.P

Electrical Data

Power

3 phase

440 V with netural 2 K.W


Main motor

3 phase

2 H.P

1440 RPM

6 Lead

1.5 K.W

Frequency Drive

230 V 2 H.P

Input single Phase

output 3 phase

440 V 2 H.P

Input 3 phase

output 3 phase

Heater

50 Volts

250 Watts for jaws


50 Volts

400 Watts, Disc Heater

Transformer

440/50 Watta/ 50 Amp.
