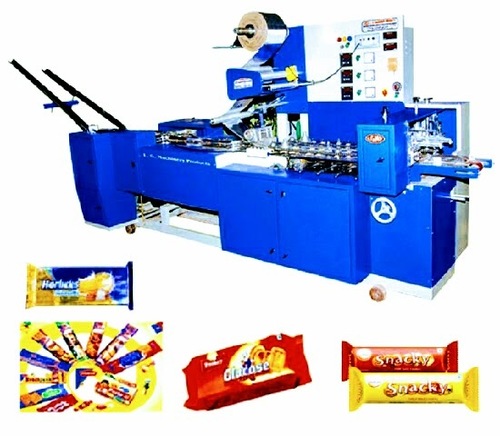

Double Chute Biscuits Packing Machine

Double Chute Biscuits Packing Machine
Double Chute Biscuits Packing Machine
Product Code : LGMP LR 90
Brand Name : LGMP
Product Description



Support of the professional engineers and technicians enables us to provide a wide range of Double Chute Biscuits Packing Machine. This is manufactured under the guidance of our team by utilizing premium quality materials. Needs negligible maintenance, this is useful for packing rectangular, round and square shaped biscuits. Its automatic pusher is used to convey biscuits as per stack length to its main feeder conveyor. In order to meet set industry standards, this Double Chute Biscuits Packing Machine is rigorously tested on different parameters before dispatch.

Features:



  • Noiseless and maintenance free
  • Excellent performance
  • Sturdy construction






Technical Specification :

Capacity

Production for 8 Hrs.

Weight

100 Gms Packet

Production

Maximum 10 Tons

Dimensions :

Model

Length

Height

Width

Approx weight

LGMP/LR/90

15 Feet

6 Feet

4 Feet

1.3 Ton (Approx)

Technical Data :

Maximum Product Height

Minimum Product Height

Maximum Width of the Product

Minimum Width of the Product

Max./Min. Stack Length

Maximum Speed (Depending upon the product

60 mm

25 mm

60 mm

25 mm

180mm/.55mm

100-120 Packets Per Min.

Wrapping Material :

Maximum Width of the Packing Material

Minimum Width of the Packing Material

Maximum Reel Dia

500 mm

140 mm

12 inch

Electrical Data :

Power

Frequency Drive

Main Motor

Heater

3 Phase

230V
1.5 H.P

3 Phase
6 Lead

50 Volts 50 Volts

440V with neutral 2 K.W.

Input Single Phase
Output 3 Phase

Input 1.5 H.P.
Output 1440 RPM 1.125 K.W.

250 Watts 400 Watts,
for Jaws Disc Heater

Transformer :Input Ac 440 Volts / Output Ac 50 Volts
