Cream Biscuit Packing Machine

Cream Biscuit Packing Machine
Cream Biscuit Packing Machine
Product Code : LGMP LR 60
Brand Name : LGMP
Product Description

Cream Biscuit Packing Machine

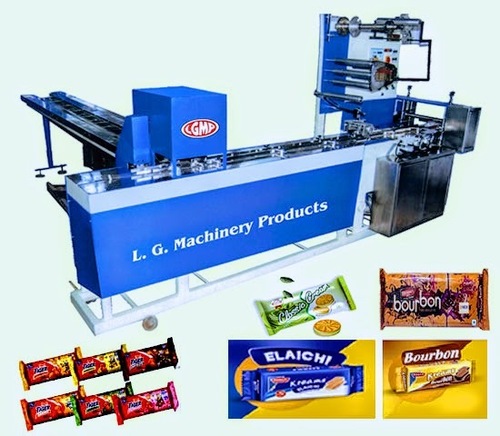

The 'L' type conveyor of this Cream Biscuit Packing Machine is required for manual feeding of biscuits. The pusher system o this machine conveys these biscuits and packaging papers to its adjustable folding box. Its hot sealing rollers are used for proper sealing of packaged biscuits. The machine's rotating hot jaw is required for end sealing and cutting of packaged items. As a prestigious manufacturer and exporter of Maharashtra, we are offering best quality Cream Biscuit Packing Machine which is appreciated for its trouble free packaging technique.

Technical Specification :

Capacity

Production for 8 Hrs.

Dimensions

Model

Length

Height

Width

Approx weight

LGMP/LR/60

15 Feet

6 Feet

10 Feet

1.2 Ton (Approx)

Technical Data

Maximum Product Height

Minimum Product Height

Maximum Width of the Product

Minimum Width of the Product

Max./Min. Stack Length

Maximum Speed (Depending upon the product)

60 mm

25 mm

160 mm

50 mm

150 mm

70-80 Packets Per Min.

Wrapping Material

Maximum Width of the Packing Material

Minimum Width of the Packing Material

Maximum Reel Dia

250 mm

140 mm

12 inch

Electrical Data

Power

Frequency Drive

Main Motor

Heater

3 Phase

230V
1.5 H.P

3 Phase
6 Lead

50 Volts 50 Volts

440V with neutral 2 K.W.

Input Single Phase
Output 3 Phase

Input 1.5 H.P.
Output 1440 RPM 1.125 K.W.

250 Watts 400 Watts,
for Jaws Disc Heater

Transformer :Input Ac 440 Volts / Output Ac 50 Volts
