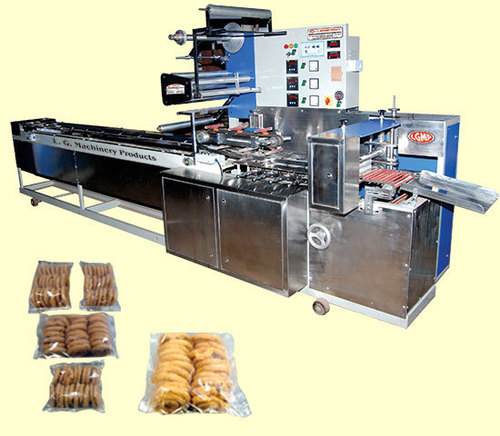

Chakali Packing Machine

Chakali Packing Machine
Chakali Packing Machine
Product Code : LGMP LR HS 30
Brand Name : LGMP
Product Description


In the year 2006 our company was inaugurated as a leading manufacturer and exporter of Chakali Packing Machine. It is manufactured by making use of quality tested materials and highly advanced technology. This is suitable for soan papdi and  biscuit packing purpose. With the use of high-end technology and fine quality materials, this is sturdy and has rust-proof finishing. Furthermore, our esteemed customers can avail this Chakali Packing Machine from us at industry leading prices.

Features:


  • Optimum performance
  • Less maintenance
  • Easy to operate

Apart from wrapping chakali, the Chakali Packing Machine is suitable for soan papdi and  biscuit packing purpose. The steel made rod of this machine conveys toast biscuits and toast paper to its adjustable folding box The sealing an cutting of packaged material are done by rotation of its hot jaw. As a prestigious manufacturer and exporter of Maharashtra, we are offering premium quality Chakali Packing Machine which is appreciated for its 8 hours of operation per day and more than 3.8 ton production capacity.

Technical Specification :

Capacity

Production for 8 Hrs.

Weight

300 Gms Packet

Production

Maximum 3.8 Tons

Dimensions :

Model

Length

Height

Width

Approx weight

LGMP/LR/HS/30A

16 FT 6 Inches

6 Feet

5 Feet

1.2 Ton (Approx)

Technical Data :

Maximum Product Height

Minimum Product Height

Maximum Width of the Product

Minimum Width of the Product

Max./Min. Stack Length

Maximum Speed (Depending upon the product)

70 mm

30 mm

160 mm

60 mm

280 mm

30-35 Packets Per
Min.

Wrapping Material :

Maximum Width of the Packing Material

Minimum Width of the Packing Material

Maximum Reel Dia

500 mm

150 mm

12 inch

Electrical Data :

Power

Frequency Drive

Main Motor

Heater

3 Phase

230V
1.5 H.P

3 Phase
6 Lead

50 Volts 50 Volts

440V with neutral 2 K.W.

Input Single Phase
Output 3 Phase

Input 1.5 H.P.
Output 1440 RPM 1.125 K.W.

250 Watts 400 Watts,
for Jaws Disc Heater

Transformer :Input Ac 440 Volts / Output Ac 50 Volts
